Instruction:

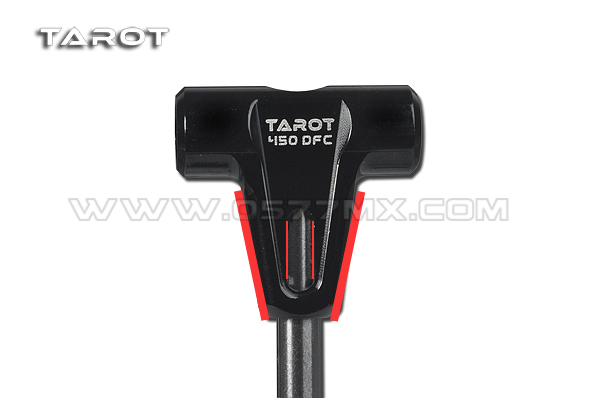

The product is applicable to TAROT 450 DFC (TL45162). Texture of 6061-T6 Aluminum alloy, CNC processing, and has low C.G and short main shaft design. The rotor disk is close to the C.G.,  this makes some 3D acrobatics such as roll, pirouette flip, tic toc neater easier, and get hovering much stable. Also better look.
The new DFC main rotor hub with new simple design. The V frame provides a strong bracing structure, reduces the possibilities of damaging significantly. The bottom of new DFC main rotor hub is sealed to prevent spliting upon heavy impact.
DFC  one-piece damper rubber uses 85° hard rubber, the external diameter increases to 7mm. This improvement can have it flapping efficiently, compensate the unsymmetry of main rotor ascension (left and right),  reduces the weary of main rotor blade, improves the stability of flight.

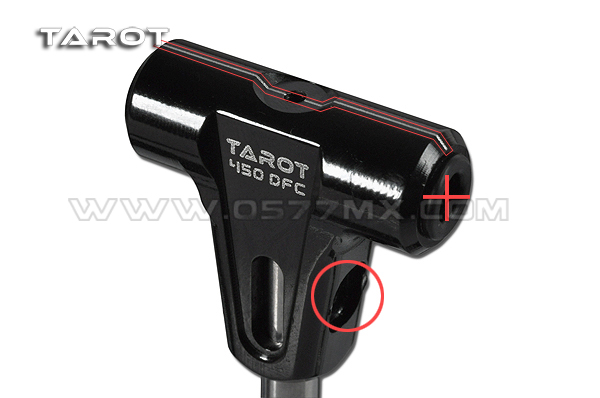

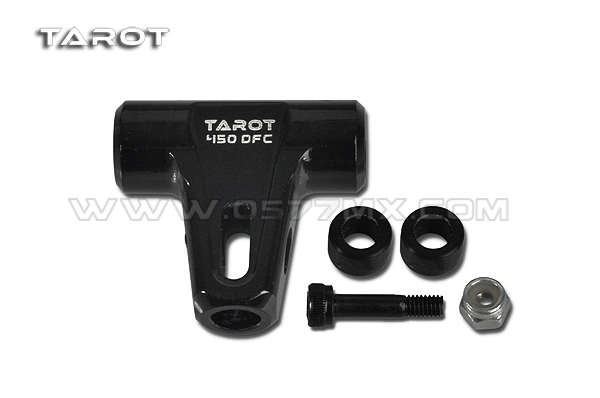

The new DFC main rotor hub set uses M2.5 locking nut spacing hole, no wrench required while to using. DFC main shaft socket collar screw uses M2.5 diameter. This change can lock the main rotor grip efficiently and prevent the screw breaking during accelerating.

The new DFC main rotor hub set uses hollow design, the weight is only 5.6g. With hollow design and M2.5 socket collar screws, the main rotor hub set and main shaft can work well and improves the 3D precise flight performance of the entire rotor head.
The top of new DFC main rotor hub set has user friendly design, pilots can use calibration to adjust the level of main rotor grip, it is convenient to adjust the pitch to 0 degree.
